6K-8K class resolution
The lineup features the same optical system that delivers 50-megapixel or higher resolution in still photography. These lenses are therefore ready for higher resolution shooting, and are ideal for chroma keying as well.
Lightweight and compact
Leveraging the high-precision, high-efficiency mass production technologies developed for its still camera lenses, SIGMA has made extremely lightweight and compact cine lenses a reality. Featuring all functions essential to cinematography, these lenses keep weight and size to a minimum, while their specification is optimized for enhanced durability. The end result is a combination of performance and compact design at the highest level.
Dust-proof and splash-proof construction
The lineup features the same dust-proof and splashproof construction as the SIGMA 150-B00mm F5-6.3 DG OS HSM I Sports. With each ring and mount specially sealed to prevent water and dust from entering, this lens is ready for use in tough conditions. The unusually robust specification of the lineup allows the user to concentrate on shooting while significantly reducing the burden of maintenance.
100% metal body
The body is made completely of metal to stand up to tough professional use over the long term.
Luminous paint for enhanced visibility
The specification, gradation baseline, and lens change indications all feature luminous paint to aid in changing the lens in the dark and other tasks. Moreover, new FULLY LUMINOUS versions of the lenses feature the above plus rings whose numbers and gradations are finished with luminous paint.
EF mount, E-mount, and PL /i mount available
The lenses are available in Canon EF mount, which is used on the majority of digital movie cameras, Sony E-mount, which is used on the Sony FS series; and PL /i mount, which is prevalent on cinema cameras. All lenses in the lineup may also be used on still cameras with the compatible mount for outstanding still camera videography.
*24-35mm T2.2 FF not available with PL mount
95mm front diameter
The front diameter is 95mm, similar to that of other cine lenses and compatible with matte boxes. Compared to lenses in the same class, SIGMA's cine lenses are more lightweight and compact.
180° focus rotational angle
At 180° the rotational angle of the focus ring is more than double that of a still camera lenses, making possible extremely high-precision focusing. SIGMA has also optimized the cam for cine lenses for even easier long distance focusing.
- Tech Specs
Supplied Accessory: Cap, Lens Support Foot

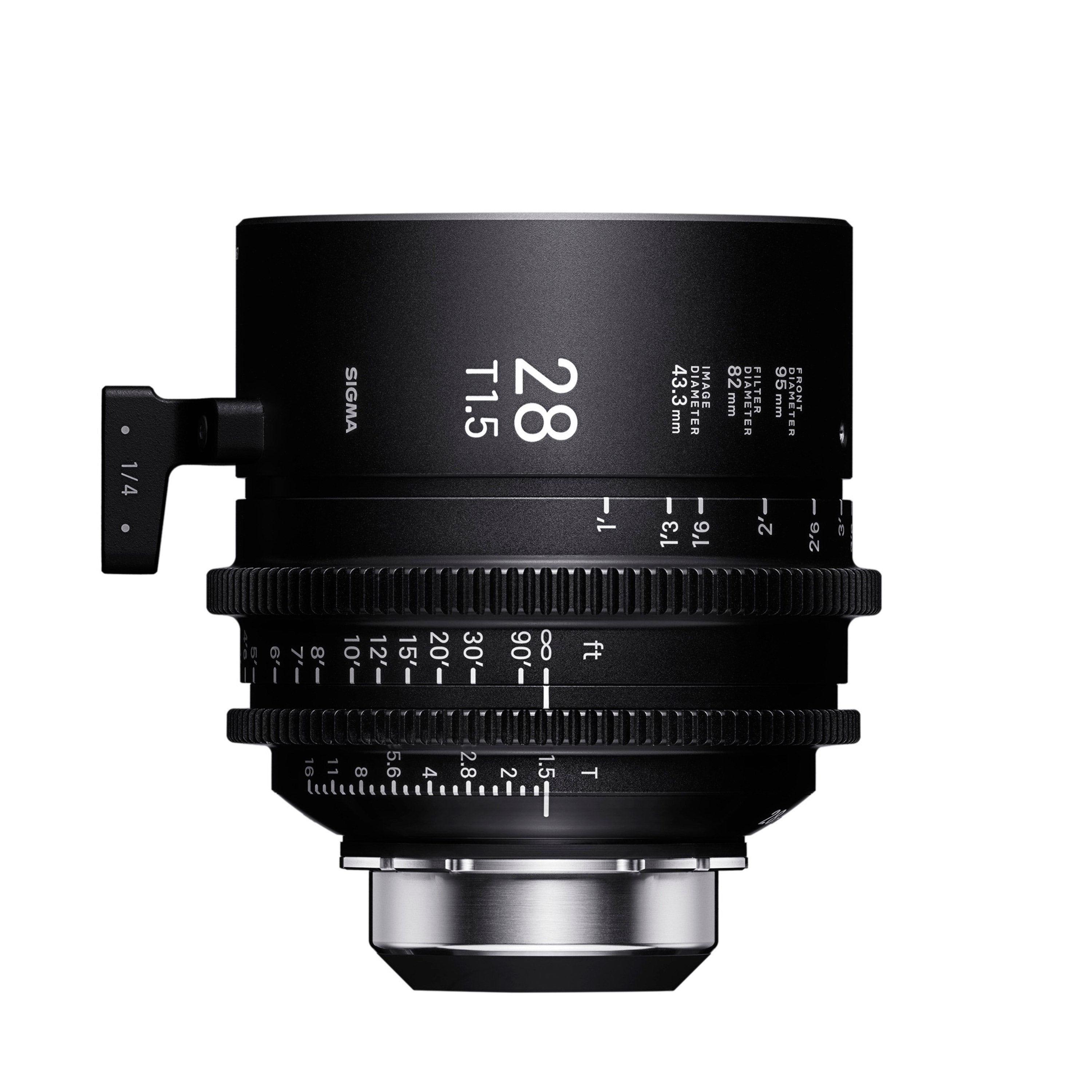

Focal Length 28mm Aperture T1.5 to T16 Number of
9 (Rounded diaphragm) Close Focus1 0.30m / 1' Image Coverage FF Φ43.3 Front diameter 95mm Filter Size 82mm Length EF mount2 107.7mm E-mount3 133.7mm PL mount4 99.7mm Weight5 EF mount 1300g/45.85oz E-mount 1360g/47.97oz PL mount 1210g/42.68oz FF6 65.5° S357 47.4° APS-C8 45.9° Barcode9 EF mount TBD E-mount TBD PL mount TBD
- 1 Close focus distance is measured from the image plane
- 2 Front to EF mount flange
- 3 Front to E-mount flange
- 4 Front to PL mount flange
- 5 Without lens support foot
- 6 Horizontal angle of view for a full-frame camera aperture (aspect ratio 1:1.5,dimensions 36 mm × 24 mm / 1.42″ × 0.94″)
- 7 Horizontal angle of view for a super 35 digital cinema camera aperture (aspect ratio 1:1.8,dimensions 24.6 mm x 13.8 mm / 0.97″ × 0.54″)
- 8 Horizontal angle of view for an APS-C camera aperture (aspect ratio 1:1.5,dimensions 23.7 mm × 15.7 mm / 0.93″ × 0.62″)
- The specifications are subject to change without notice.
